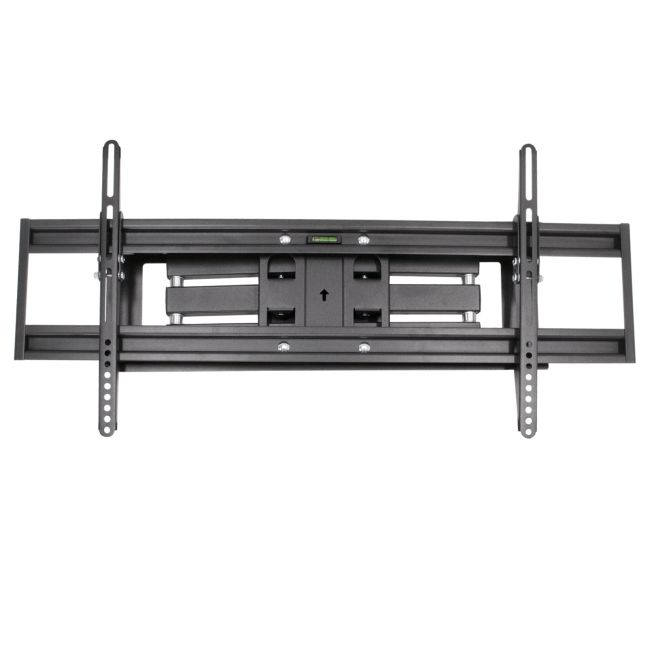

Made For A Flexible TV Setup

Whether you want to tilt, pivot, or swivel, this bracket provides all the movement you need for the best view from every angle.

Take your TV viewing experience to the next level with a mount that offers unparalleled versatility.

This bracket folds back to within just 90mm of the wall, yet extends up to 445mm when you need it, making it perfect for any space.

Key Features:

• Design folds back to 90mm from the wall

• Extends up to 380mm for perfect positioning

• 45-degree swivel left and right for maximum flexibility

• 12-degree forward tilt to reduce glare and optimize viewing angles

• Designed for Australian studs (600mm / 450mm spacing)

• Mounts easily on plaster, brick or concrete walls

• Supports up to 45kg with ease

• Fits screens between 42-70"

Designed for Australian Homes

This bracket is engineered for Australian walls, fitting both 600mm and 450mm timber studs—something many other brackets can’t do. Whether you’re mounting on plasterboard or brick and concrete, this mount is built to ensure a secure and stable installation.

Will it fit my TV?

This bracket is perfect if your TV is:

• 45" - 70"

• At least 884mm wide and 420mm tall.

• The mounting holes on your TV should be no more than 800mm apart side-to-side, and 400mm top-to-bottom.

Supports TVs up to 45kg in weight.

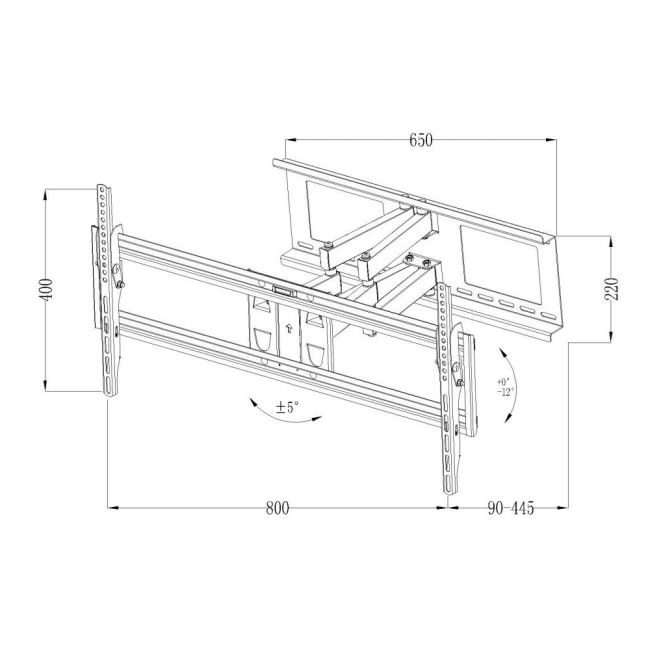

Specs

- Horizontal Pivot/Swivel: -45 to +45 degrees

- Vertical Tilt: Forward up to 12 degrees

- Distance from wall: 90mm to 445mm

- Maximum weight capacity: 45kg

- Weight of bracket: 8.5kg

- Total width of bracket: 884mm

- Total height of bracket: 420mm

- Maximum mounting hole spacing (horizontal): 800mm

- Maximum mounting hole spacing (vertical): 400mm

- Suits VESA standards up to 800x400mm

- Compatible stud spacings: 450mm / 600mm

- Also suits brick / concrete walls
